With the technology and interaction design well on their way, we´re now about to close the graphical design phase for Openbravo Web POS. It's going to look like no other Point of Sale you have seen before and sets a new design direction for Openbravo Mobile and Retail. Here's the design rationale.

Minimalist & direct: Openbravo Web POS features a minimalist design inspired by De Stijl and the Metro design language, that prefers content over GUI chrome. It uses straight and rectangular forms and is strongly typography based. The user is encouraged to interact directly with labels. For example, to add an item from the product catalogue, you just click the label (1). To reduce the amount, you just click the amount (2). There is no need for additional buttons and a minimum amount of taps is needed.
Light & flexible: Elements float on top of a background, emphasizing the lightness and flexibility of a web based application where the presentation layer is separated from business logic and data.

Optimized for modern touch screens: The new design makes use of modern touch screen capabilities that are offered by consumer devices such as the iPad but also increasingly by more industrial terminals. Products are browsed by swiping lists rather than using tedious next/previous or scroller bars. These are only rendered in case of older touch screens or mouse/keyboard operated keyboards.

Happy to be personalized & customized: Openbravo Web POS runs on anything with a browser - which means it must look good on all platforms and devices. It should also blend in with the retailer's shop and brand. The open architecture and use of standard web technology (HTML5) allows for easy adaptation for specific environments and even without coding, personalization should be easy. Colors and backgrounds can be matched with the company's corporate identity and adjusted to temporary themes.

Playful and proud to be seen: Most POS GUIs are dull looking, which is a missed opportunity because the exposure of these systems to staff and clients is high compared to other back end systems. POS systems take central stage in most restaurants and bars and retailers more and more let their customers co-interact with the system. Openbravo Web POS wants to be an appealing, fun and professional piece of software that staff and customers love to use and show. Nifty little design details such as the folded corner, animations, illustrations and intelligent messaging add to the experience. The exposure of the POS GUI to staff and customers is also an opportunity to communicate with them, through the GUI itself (e.g. branded themes), the message area (for staff) or the customer display (for customers).

Here's the full set.

A new product deserves a new logo. We have just finished the art work and are proud to share it with you. It will serve as an identifier and emphasizes the importance of Openbravo 3. The "3" represents agility, openness, and speed, the gradient flirting with a retro-futurism. It also leans a bit forward. That´s where we want to go, right? We have put the agile erp in lowercase text because we have "tamed" ERP. From now on, the user is in charge. You will find the logo soon (in the next few days) on the Openbravo 3 RC4 login page, on the demo site and through marketing communication. The product logo was designed by Volpus Design.

Release 3.0 of Openbravo will be an exciting release with major improvements in the user experience. A few weeks ago we released 3.0-RC2 that contains only a small part of the total user experience redesign we planned for 3.0-Production (due for Q1 next year).

In Part I of The Power of Visualization I emphasized the need to visualize and how it can help you to be more effective in your work. In this blog post we will look at the tools and methods per activity and object type.

Ideas & Insights

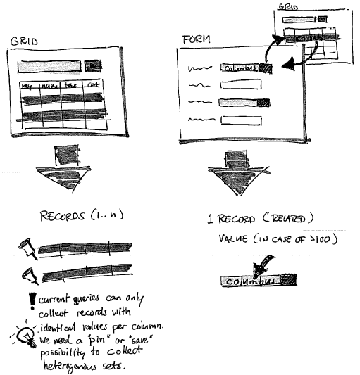

Key point here is that whatever tool you use, make sure it is easy and fast in producing results. Idea generation is all about quantity and divergence and not about details. Pen & paper are ideal. Buy a couple of nice fine liners and markers in different colors and teach yourself some basic sketching techniques to become more effective. Scan or photograph your drawings for reuse in presentations or sharing online. PNG is a good image format for drawings as it combines the strengths of both JPEG (gradients) and GIF (solid fills).

If the ideas yet need to surface, you may want to use visualization tools to create & structure those, together with their associations. Mind maps are commonly used. The benefit over linear lists is that mind maps visualize the ideas in a radial manner which encourages users to diverge and connect ideas. Check out Mindmeister, Bubbl, mind42 and Freemind. The first three are web based, the latter is an opensource Java client application. The image below was produced in Mindmeister.



Design & Development

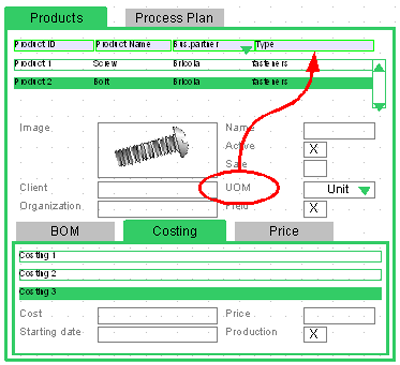

In this stage you have already filtered out the ideas that won't work and want to add more detail to the few that remain. In most cases this will mean that you need to start drawing wireframes. These are skeleton-style representations of pages, tables, forms etc. that show in low fidelity what elements a page needs to contain and how the interaction works. Esthetics are of less importance here. Making things too pretty can even work against you. Having said that,I have to admit that I am violating the rules of good wireframing sometimes as I tend to add lots of detail and even graphical design in early wireframes. The reason why I do this is that I am a strong believer that you can iterate function and form in the same cycles. The drawback is that you'll need to be skilled in at least basic graphical design and proficient in a tool that allows you to do so (e.g. Photoshop or Illustrator). If this is not the case then this approach will be too elaborate and frustrating. Good looking wireframes can also be misleading for your stakeholders as you'll shift the focus to the looks rather than the functionality of your concepts. You want to discuss functionality in this stage, not looks. The image below shows an example of a typical wireframe, produced in OpenOffic.org. It's great to see how the essence of the idea was preserved in later iterations.



You can also mix existing screen elements (such as a browser frame) with hand drawing.

There is a plethora of tools at your disposal for creating wireframes. Powerpoint is great and super simple. Of that same company, there is a product called Visio that I hate but need to mention as it is still the standard in wireframe land. It produces neat wireframes but you can hardly add interactivity and the GUI feels very 1999. I prefer Axure (client install) and a new kid on the block called Balsamiq (web based) that produces very smart looking wireframes (see image below) using a library of pre-sketched components. I have not used Justinmind yet but it is supposed to be a very extensive wireframing / development tool that supports business logic. I recently came across a new web based (Flash) tool called Flairbuilder and like it very much. For Mac the standard is Omnigraffle.



Data
Data visualization is an art and profession in itself but let me point you to a few resources and tricks that you perhaps had not heard of. Books: a classic about data visualization is Edward Tufte's The Visual Display of Quantitative Information. More specific and very relevant for ERP is Information Dashboard Design. It reveals all tricks you need to design state of the art KPI-O-Meters.

Google has made it very easy to create charts via Google Docs. The cool thing is that you can use them elsewhere (blog, web page, portal). Using Google Gadgets, you can even create Hans Rosling style animated charts, of which I was raving in my last post. The Motion Chart gadget uses five dimensions in a single chart and can be fed with your own Google Doc spreadsheet. Below an example I did. It shows sales, profit and order volume per customer over time. Till now you can only use them in iGoogle (hence the screenshot) but I expect that it can soon be used more ubiquitously. Other great visualization tools online are Zoho Reports and IBM's Many Eyes.



Processes
Process modeling or visualization in its essence comprises of labeled boxes and arrows to connect them. Most presentation software does boxes and arrows so for the odd process flow chart you don't have to look further than Powerpoint or its opensource sibling OpenOffice.org's Impress.
For more advanced modeling it is recommended to use dedicated software. Four examples, from simple & cheap to complex & expensive:

Lovely Charts is an easy to use application but it's still suprisingly powerful. You can create flow charts, sitemaps and even basic wireframes. It is web-based and the basic version is free.

We used BizAgi for the modeling of the most common ERP business processes. It uses the Business Process Modeling Notation (BPMN). There is a 30-day trial and it only runs on Windows.

Intalio|Designer is is a good open source alternative to BizAgi. It is built on top of Eclipse.

On the high end of the spectrum there are the modeling tools that are part of a development suite, such as IBM Rational Software Modeler. It uses the Unified Modeling Language (UML) and it does the activity diagram, which is the most suitable UML asset for flow modeling. For most users however, software such as IBM Rational Software Modeler is too complex and too expensive.

Pretty Products & Presentation
This is the toughest one. I want you to create pretty stuff. I want you to pay attention to visual details in everything you do, from writing an email, creating a Powerpoint, to designing a customized entry screen for your client. "I am not a designer" is no excuse really for not doing it. There are plenty of tools out there that make life easy on the visual part but the real difference you make by following a set of basic rules. You can use them all the time since almost all artefacts you create at work are things that will be looked at by a spoiled audience.

• Audience. This one is too easy but therefore not of less importance: understand your audience and design for them. A presentation for developers should look different than one for marketeers. A toddler prefers other colors than an 80 year old.


• Images instead of words. Many great presenters use extremely simple slide material with little text and lots of imagery. Photos are used in abundance to capture attention and set the tone, text is used to emphasize what is said. In What Marketers Should Know About Design Research, Ekaterina Khramkova manages to take you through an 88 slides long presentation without ever boring you. In fact, the slides are so clear and enticing that you can easily consume it without the audio. You can do the same. Grab a catchy photo that represents the story you are telling and use some bullets to mark the most important points your are making. Be careful not to use photos that carry copyright. Deviantart and Creative Commons are sites with lots of art work that can be used freely but always check the terms. In case of doubt, just contact the artist and ask for permission. You can also create your own material of course.


• Layout, typography & consistency. Think about the layout before you begin. Pick a limited palette of colors, pick one (or two) fonts and styles. Choose alignment, where to drop your images and when to use bold. Well, all has been said before but not all is applied by all. When you don't feel comfortable, let your in-house designer or someone in marketing look at what you are doing.


• Uniqueness. You want people to remember your presentation or product. Surprise, provoke, be unique. Boring is the worst of sins. Pretty is better than ugly and ugly is better than boring. You should check out TED's presentations frequently anyway but this presentation by Seth Godin hits the nail on the head.


Collaboration & Community
Now you want to share all that beauty with the world. You don't want to email your visuals around because that means they will have a life span comparable to door-to-door print advertisment and will fall into oblivium. In case of a design process, you will not be able to document the chronological progress which is crucial in the story telling of how you got to the final solution and why which decisions were made. What is needed is a web-based platform where visual material can be uploaded with ease and viewed by all. Ideally viewers can collaborate by adding comments, annotations and so on. Privacy settings can also be important in case you want to share your work only with a selected group of people.

For the design work of the next generation GUI of Openbravo ERP I have been using Picasa web albums. Annotating is not possible unfortunately and commenting is quite basic but it is rock solid, fast and easy. Flickr offers a similar service. They have added a lot of features lately, including annotations. The drawback of both is that they don't do versioning. A later version of an image will be added to the collection, rather than replacing the previous version. This protects you from cheating with the historical progress tracking but at times it would be great just to be able to replace an image without having to delete the old one and losing its target URL. If you know of any site that does versioning, please let me know.

Both Thinkature and Conceptshare are more advanced visual communication tools that let you collaborate in realtime around a design concept. Jing I use for instant screenshot sharing and Screencast I use for video sharing. It beats Youtube and many other services in video quality because it doesn't resize to a lower resolution.

For webinars the open source hotties are Yugma and DimDim. I have not used it but Glance also received good reviews.

This collection of tools and methods should get you started with visualization. I have opened a thread on Forge for discussions on this topic.

ERP is a domain that is associated with large amounts of data and complex processes. ERP software traditionally uses tables and forms to visualize the data and in many cases processes are not visualized at all. The reason for this is historically: Activities such as planning, purchasing, sales and financial management are mostly about numbers and the way these numbers are "visualized" has hardly changed in the last 100 years. This cash book still looks very similar to the one we use today. This does not make it any easier for people working with it, whether it be designers, developers, business partners or end users.

I believe that we can make things much easier by applying visualization in our every day activities and this does not only apply to building flashy user interfaces or creating sales forecast charts. Visualization can be used to gain insights that you would never have thought of before, it can be used to seduce customers, your boss, your peers and the opposite sex. It can be used to spur creativity, invoke discussion and generate alternatives. And the effort it takes is much lower than you´d think. Let me illustrate all this per activity and object type.

Ideas & Insights

So you have this great idea or insight, right? What are you going to do with it? Mostly, you need to get buy-in, so what do you do? Describe it in an email and hope people will understand it? We are surrounded by many smart people but most of them are busy and don´t want to use their brain cycles to understand what you want them to understand. By visualizing your idea or a problem you make it easier for your audience to grasp what you mean and because you made it less painful, they will reward you with their support (providing that the idea was good of course). Another happy side effect is that by visualizing your idea or problem, YOU will also understand it better. Those who are best in visualizing a problem, are most likely the ones to solve the problem.

Design & Development

From requirement to code is a long way and many things can go wrong. Traditionally business consultants distilled requirements, wrote use cases to capture what the system needs to do and the developer converted those in functional specifications outlining what technology architecture will be used. Nowadays most development companies also employ user experience designers who are in charge of designing the user interface. One of the most differentiating features of these people is that they tend to visualize ideas and concepts as early as possible in the design process. In fact, they start sketching the moment they enter a meeting room for the first project brief. This really helps the team to understand the (same) problem and to evaluate the different solutions before a line of code has been produced. The last months we shared all design work online with the community and solicited feedback in every step. This saves time & money, brings more and better ideas and results in better quality with lower risk. We should all be sketching more often.

Data

The source of all data is in tables in data bases or in spread sheets. This is not going to change anytime soon but the way to present the data is much more flexible. An image (or video) says more than a thousand words so just have a look at this tremendous presentation of Hans Rosling who makes boring statistics come alive. Try to put this in a spreadsheet and make people understand it! There is a great opportunity for us to use visualization in ERP systems when we start to include business intelligence (BI) functionality. This will help us to view the data from different angles and to gain better and earlier insights than with using traditional data views. It also lets us interact with the data. A great example of effective data visualization is the NY Times interactive chart for the 2008 Olympic medal count. One of our community members shared some great ideas for data visualization and manipulation for Openbravo ERP.

Processes

Things happen over time and most of the time the path via which things happen is not linear but depends on certain conditions. This can get quite hard to understand without visualization. I was very happy when the Openbravo team started to model the most common business processes. Now we understand on the most abstract level what task flows we need to support. Everything we design and develop should be supporting those. Process visualization can be used everywhere: From a simple HR process for doing your expense report to helping a potential customer understand how the sign-up and installation will work and when the payment takes place. When I moved to Spain I had to apply for a health card (tarjeta sanitaria) but I was unable to find any process description (not even in words) which eventually made me visit 6 different administrative offices (all with very Spanish opening times) all over the city. Half way I had no idea what form was supposed to do what so I ended up dropping the whole pile of documents on the next desk in the process explaining to the staff: "I just need a health card, take the paper you need and tell me what to do next!". It took me almost a full day.

Pretty Products & Presentation

One study at the UCLA indicated that up to 93 percent of communication effectiveness is determined by nonverbal cues. That was about direct communication between people but it isn't hard to imagine that similar figures apply to other channels. The power of good looks can be used to your advantage. People like to use beautiful products, it makes them feel happy and confident. Your customers are people too, they like to use a handsome ERP system and look at beautiful presentations, pretty invoices and cool looking sales charts. Among techies, aesthetics are normally not considered to be very important, it is all about features: The iPod was a "lame product" according to a post by a Slashdot community member because it did not have wireless and less space than a competing product. S(he) Obviously did not understand that good design & simplicity can beat feature count. There is nothing shallow about liking pretty stuff and you better make things look good if you want to impress.

This was part I. In part II I will give you some tools and methods to let you do the visualizing.
